Using the Softube Console1

Ardour has a good support for the Softube Console1 controller.

Connecting the Console1

Console1 comes with a single USB Socket on the back. Connect a suitable USB cable from there to a USB port on your computer.

Ardour uses the Console1 as a generic MIDI controller. You do not need to do anything to enable this—The Console1 sends and receives ordinary MIDI controller messages to/from the host, and the host understands the intended meaning of these messages. We note this detail to avoid speculation about whether Ardour supports the native mode, which sends MIDI Sysex Messages—it does not.

The Console1 will be automatically recognized by your operating system, and will appear in any of the lists of possible MIDI ports in both Ardour and other similar software.

To connect the Console1 to Ardour, open the Preferences dialog, and then click on “Control Surfaces”. Click on the “Enable” button in the line that says “Console1” in order to activate Ardour’s Console1 support. Then double click on the line that says “Console1”. A new dialog will open, containing two dropdown selectors that will allow you to identify the MIDI ports where your Console1 is connected.

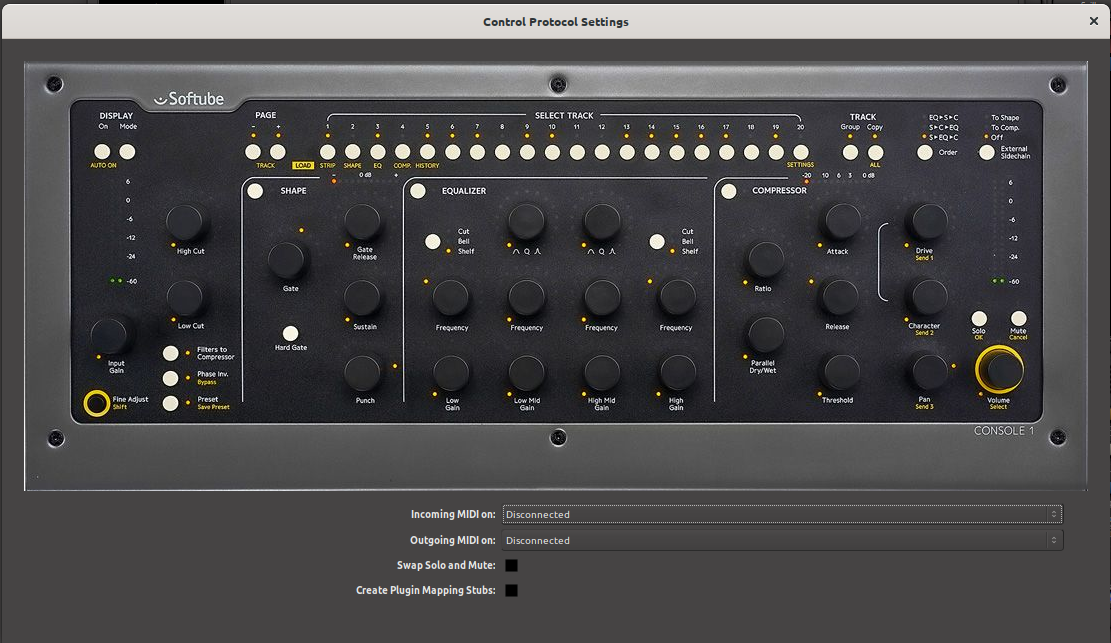

The Console 1 configuration dialog
The Console1 configuration dialog

Once you select the input and output port, Ardour will initialize the Console1 and it will be ready to use. You only need do this once: once these ports are connected and your session has been saved, the connections will be made automatically in this and other future sessions.

Checkboxes

The checkbox “Swap Solo and Mute” does exactly that. In Ardour and Mixbus, these buttons are arranged exactly the other way round than in Console1. Since this can be irritating, the assignment can be reversed here.

Work in Progress
The checkbox “Create Plugin Mapping Stubs” automatically creates mapping files for external plugins - if they does not already exists. See the last section “External Plugins” for further information.

Harrison Mixbus & Mixbus 32c

A lot of functionality is developed to be used with Harrison Mixbus and Harrison Mixbus32c, therefore the assignment of the controls might sometimes feels a little arbitrary. However, in the future it might be possible, to control plugins with this surface.
Controls only used by Harrison Mixbus (32c) are marked with [Mixbus]
Controls inside a Mixbus only section which are working in Ardour as well marked with [Ardour]\

Using the Console1

The Fine Adjust / Shift button unfortunately does not work in the generic MIDI mode. Therefore the Preset / Save Preset button is used as a shift button. In the following this will be simply referred to as the Shift button

The controls

General

On

Is lit when a mixer strip is in solo mode and can disables all solo modes.Rude Solo

Mode

Zooms to selection

Page Up / Page Down

Switches 20 mixer strips up or down. Only lit if there is another page/bank

1.…20

Select the nth mixer strip of the current bank.The Master channel is always the last mixer strip

Track Group/Track Copy

Unused

Order

[Mixbus]Switches between the compressor modes: Leveler/Compressor/Limiter — see Compressor section

External Sidechain

Switches between Edit, Cue and Mixer Screen

Input

Trim

Input Meter

Unused

High Cut

[Mixbus]High Cut

Low Cut

[Mixbus]Low Cut

Filter to Compressor

[Mixbus]Filters on/off

Phase

Switches the phase of all channels. If only one of more channels is switched in the GUI, the LED blinks

Preset

The Global ‘Shift’ button

Pan

Pan

Solo

Solo button for the mixer strip

Mute

Mute button for the mixer strip, blinks, when the mixer strip is muted due to another mixer strips Solo-Mode

Volume Meter

Shows the mixer strip volume

Volume

Sets the mixer strip volume

Shape-Section [Mixbus]

Shape

Switches the Gate section on or off

Shape Meter

Shows the Gain reduction of the gate

Gate

Threshold for the gate

Gate Release

Release time for the gate

Shift+Gate Release

Hysteresis for the gate

Sustain

Attack time for the gate

Shift+Sustain

Hold time for the gate

Punch

Depth for the gate

Shift+Punch

Sidechain filter frequency

Hard Gate

Sidechain filter on / off

Shift+Hard Gate

Sidechain filter listen

Equalizer Section [Mixbus]

All encoders in the EQ section are working as sends if the shift button is activated. See the bus send section.

Equalizer

Switches the Equalizer section on or off

Low Gain

The Gain (reduction or boost) of the semiparametric bass eq

(Low) Frequency

The frequency of the semiparametric bass eq

(Low) Cut / Bell / Shelf

Switches between Cut/Boost or Shelf (this uses only two of the three states

Low Mid Gain

The Gain (reduction or boost) of the semiparametric low mid eq

(Low Mid) Frequency

The frequency of the semiparametric low mid eq

(Low Mid) Shape

[Ardour]The eleventh send of a mixer strip / Send to the eleventh mixbus

High Mid Gain

The Gain (reduction or boost) of the semiparametric high mid eq

(High Mid) Frequency

The frequency of the semiparametric high mid eq

(High Mid) Shape

[Ardour]The twelfth send of a mixer strip / Send to the twelfth mixbus (see section Mixbusses)

High Gain

The Gain (reduction or boost) of the semiparametric treble eq

(High) Frequency

The frequency of the semiparametric treble eq

Compressor Section [Mixbus]

Compressor

Switches the Compressor on or off

Compressor Meter

Shows the gain reduction of the leveler/compressor/limiter

Order

Above this section Switches between the compressor modes: Leveler/Compressor/Limiter

Ratio

Ratio of the compressor

Parallel Dry/Wet

Makeup gain of the compressor

Attack

Attack time of the compressor

Release

Release time of the compressor

Threshold

Threshold of the compressor

Sends

All Encoders in the equalizer-section are working as sends when ‘shift’ is selected.
Additionally the Low-Mid and High-Mid shape encoders are sends to the mixbusses eleven and twelfe. The Idea behind this is to have some common effects on this two mixbusses which are accessible without ‘shift’. Currently, this is focused on Mixbus.
The functionality will be extended to fit better with Ardour in a second development phase. However, if a mixer strip in Ardour has sends to busses, these are accessible with the send encoders as well. These are numbered from top to bottom. The topmost send can be changed by the send 1 encoder Shift+(Low) Frequency, the next send below by the send 2 encoder Shift+(Low Mid) Frequency and so on.

Shift+(Low) Frequency

Send 1

Shift+(Low Mid) Frequency

Send 2

Shift+(High Mid) Frequency

Send 3

Shift+(High) Frequency

Send 4

Shift+Low Gain

Send 5

Shift+Low Mid Gain

Send 6

Shift+High Mid Gain

Send 7

Shift+High Gain

Send 8

Shift+(Low Mid) Shape

Send 9

Shift+(High Mid) Shape

Send 10

(Low Mid) Shape

Send 11

(High Mid) Shape

Send 12

External Plugins

This is work in progress. But things described here are already working but might be unstable!
Pressing Group will set Console1 into external plugin mode. External plugins are all plugins in case of Ardour and in case of Mixbus all plugins which are not a fixed part of the mixerstrips.

Group

Set or unset the Console 1 into “External Plugin Mode”

1-20

Select the plugin at position [selected number]. Pressing repeatedly then shows or hides the plugin.The LED of the selected channel stay on permanently, the channel LED of the plugin number stays in ‘blinking mode’.

Mute

Disables the plugin

All other assignements needs to be done with the mapping files. A stub of such a mapping file can be automatically created when the checkbox “Create Plugin Mapping Stubs” in the “Control Protocol Settings” dialog is enabled.

The mapping files are created in a subdirectory “c1mappings” of the Ardour/Mixbus settings directory

This is the example of a mapping file for the a-compressor. The file name is created from the unique URL of the plugin. In this case its urn:ardour:a-comp.xml

<?xml version="1.0" encoding="UTF-8"?>
<c1plugin-mapping
        ID="urn:ardour:a-comp"
        NAME="ACE Compressor">
        <param-mapping id="0">
                <name>Attack</name>
                <mapping shift="false">COMP_ATTACK</mapping>
        </param-mapping>

        <param-mapping id="1">
                <name>Release</name>
                <mapping shift="false">COMP_RELEASE</mapping>
        </param-mapping>

        <param-mapping id="2">
                <name>Knee</name>
                <mapping shift="false"></mapping>
        </param-mapping>

        <param-mapping id="3">
                <name>Ratio</name>
                <mapping shift="false">COMP_RATIO</mapping>
        </param-mapping>

        <param-mapping id="4">
                <name>Threshold</name>
                <mapping shift="false">COMP_THRESH</mapping>
        </param-mapping>

        <param-mapping id="5">
                <name>Makeup</name>
                <mapping shift="false">COMP_PAR</mapping>
        </param-mapping>

        <param-mapping id="6">
                <name>Sidechain</name>
                <mapping shift="false"></mapping>
        </param-mapping>
</c1plugin-mapping>

It is planned to allow creating the mapping file for the plugins inside the setup dialog. This, however, might take some time.
